ULTRA LONG COB STRIP LIGHT

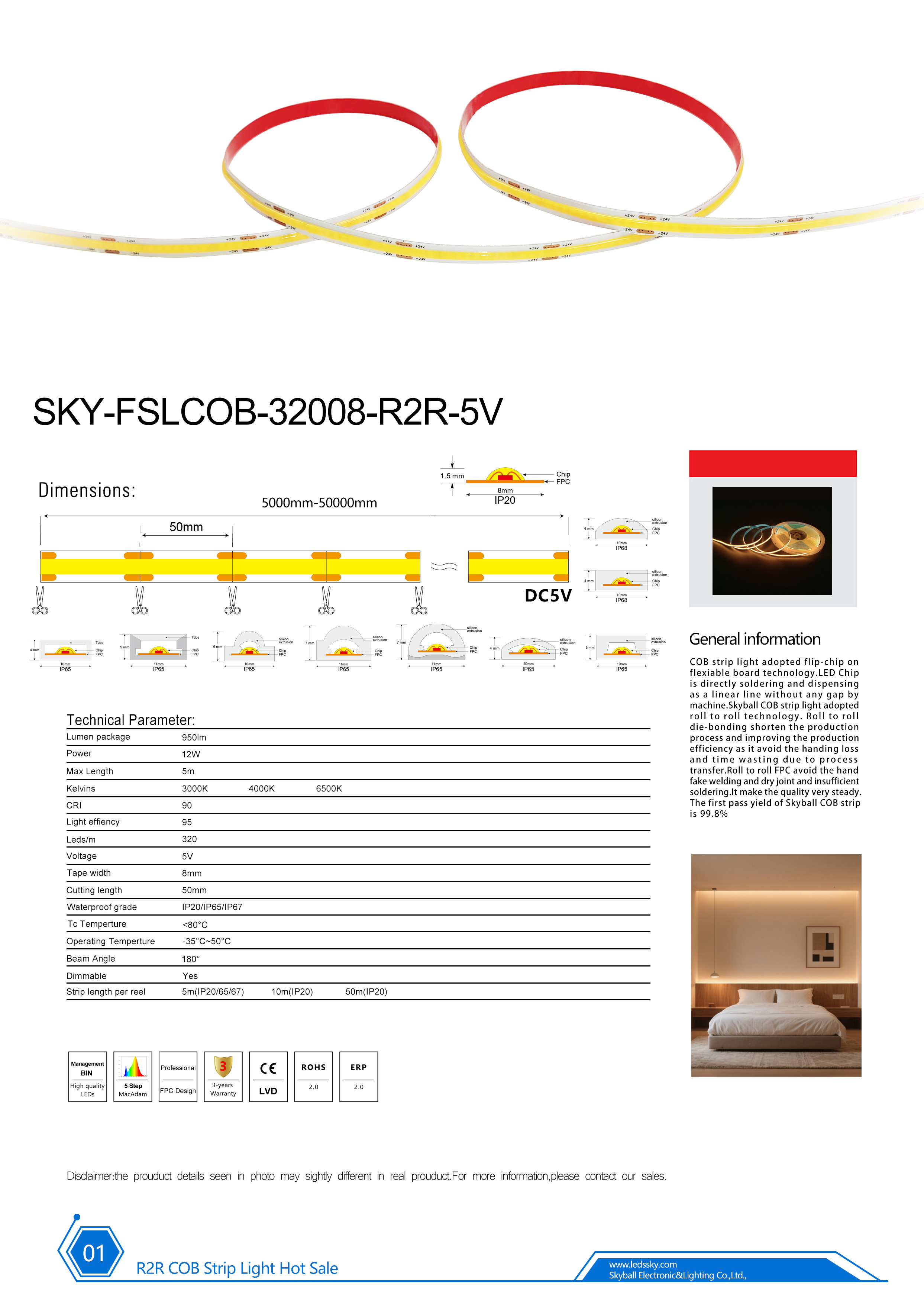

SKY-FSLCOB-32008-R2R-5V
Ultra long and roll to toll COB strip light adopted flip-chip on flexiable board technology. LED Chip is directly soldering and dispensing as a linear line without any gap by machine. It also has 180° beam angle. 8mm high thermal conductive flexable FPC board is designed with 320 led chips per meter, integrated package. Ultra long concatenation with DC24V constant voltage design , roll to roll tech, less voltage drop at 20 meters when power on one side.
Quantity:
General information
Ultra long and roll to toll COB strip light adopted flip-chip on flexiable board technology. LED Chip is directly soldering and dispensing as a linear line without any gap by machine. It also has 180° beam angle. 10mm high thermal conductive flexable FPC board is designed with 384 led chips per meter, integrated package. Ultra long concatenation with DC24V constant voltage design , roll to roll tech, less voltage drop at 20 meters when power on one side.
COB Strip light adopted Flip-chip technology,it refers to dot light souce intergration technology with LED chip attached directly to FPC,in which bracket concept was excluded.It can design its light-emmiting area and diameter as per shape and structure of the product.
