SPOT COB STRIP LIGHT

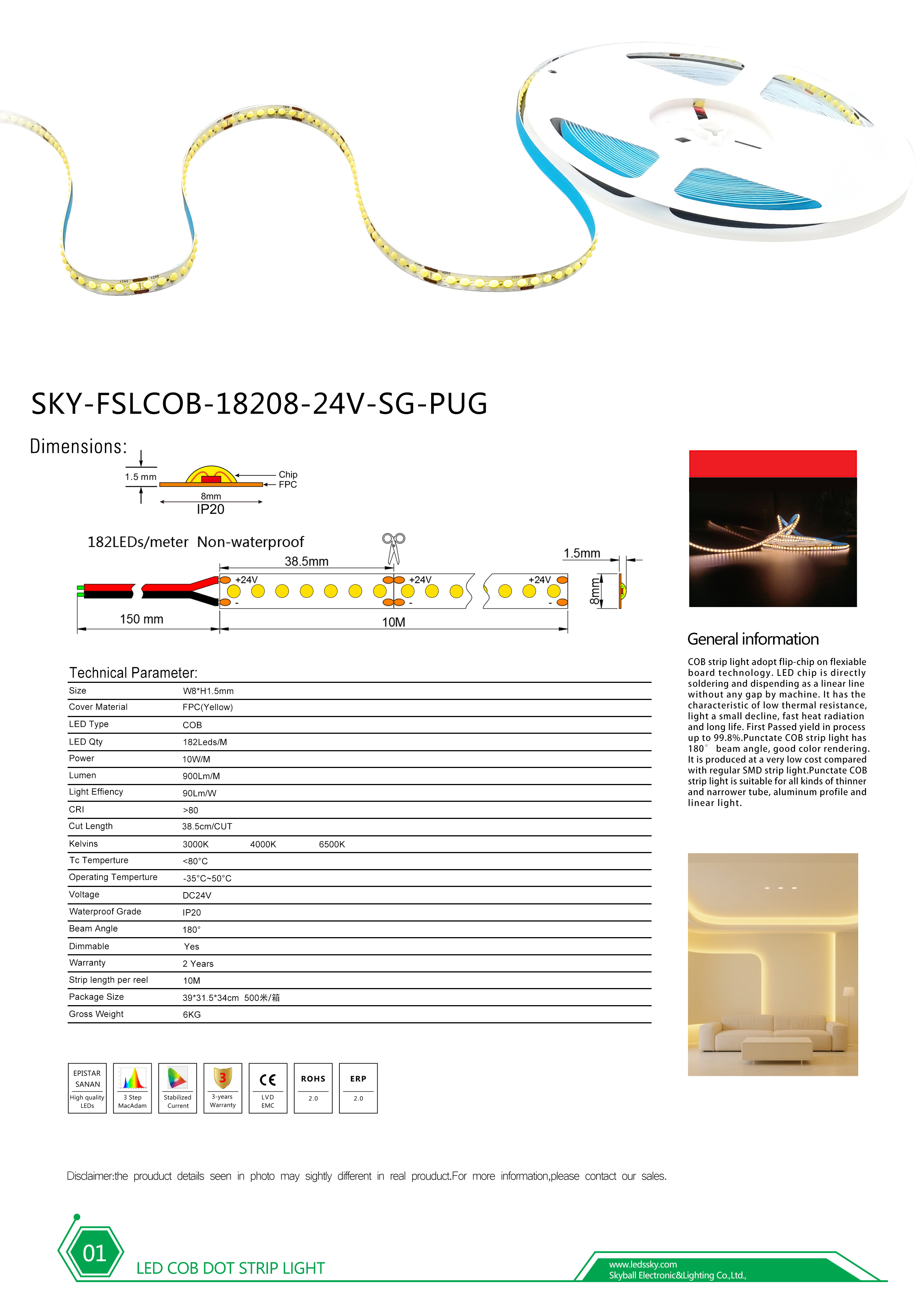

SKY-FSLCOB-18208-24V-SG-PUG
COB strip light adopt flip-chip on flexiable board technology. LED chip is directly soldering and dispending as a linear line without any gap by machine. It has the characteristic of low thermal resistance, light a small decline, fast heat radiation and long life. First Passed yield in process up to 99.8%. Punctate COB strip light has 180" beam angle, good color rendering.
It is produced at a very low cost compared with regular SMD strip light.Punctate COB strip light is suitable for all kinds of thinner and narrower tube, aluminum profile and linear light.
It is produced at a very low cost compared with regular SMD strip light.Punctate COB strip light is suitable for all kinds of thinner and narrower tube, aluminum profile and linear light.
Quantity:
General information
COB strip light adopt flip-chip on flexiable board technology. LED chip is directly soldering and dispending as a linear line without any gap by machine. It has the characteristic of low thermal resistance, light a small decline, fast heat radiation and long life. First Passed yield in process up to 99.8%. Punctate COB strip light has 180"beam angle, good color rendering.
It is produced at a very low cost compared with regular SMD strip light.Punctate COB strip light is suitable for all kinds of thinner and narrower tube, aluminum profile and linear light.
COB Strip light refersto dot light souce intergration technology with LED chip attached directly to FPC,in which bracket concept was excluded.It can design its light-emmiting area and diameter as per shape and structure of the product.
