DAM-TYPE COB STRIP LIGHT
General information

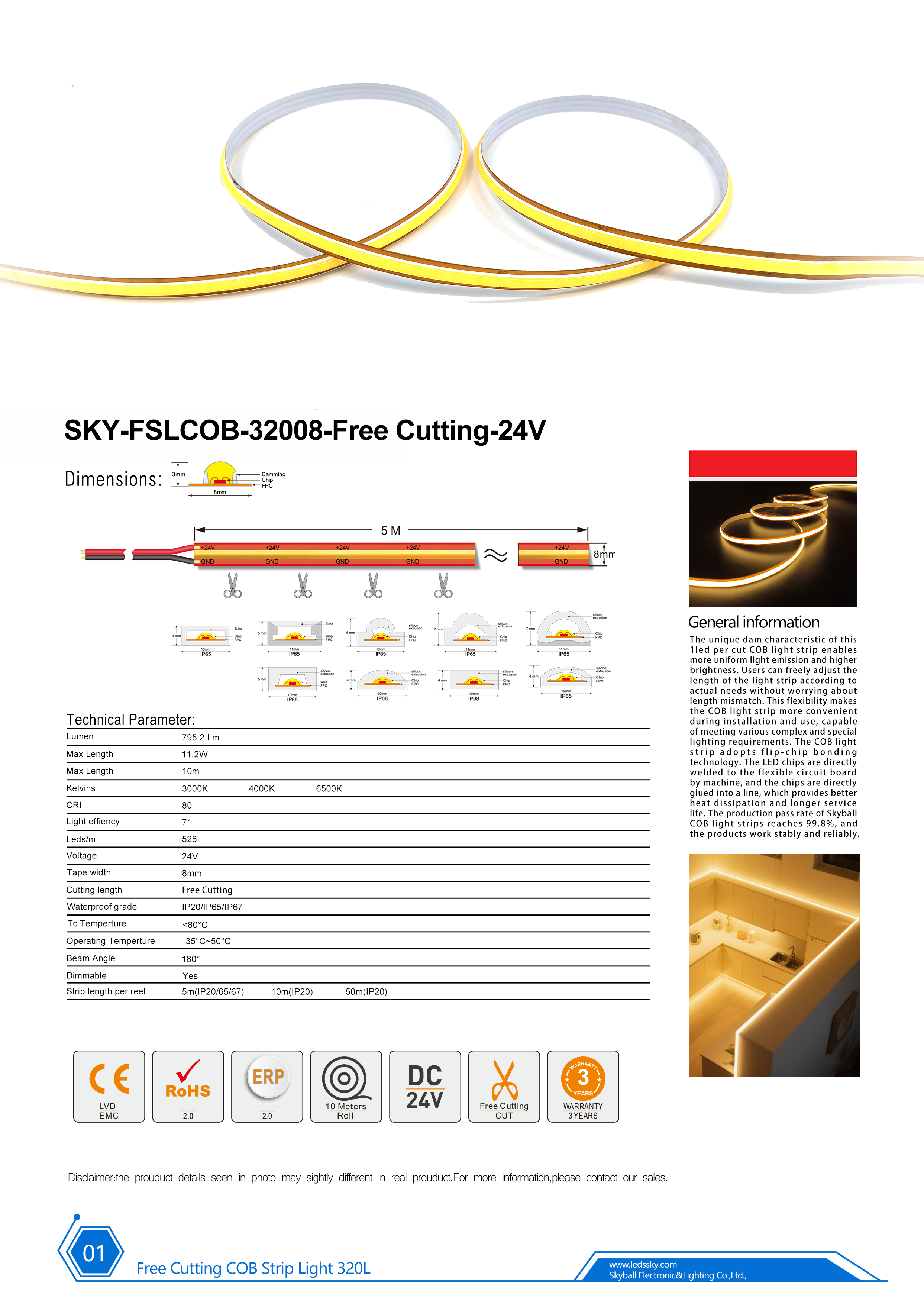

The unique dam characteristic of this 1led per cut COB light strip enables more uniform light emission and higher brightness, Users can freely adjust the length of the light strip according to actual needs without worrying about length mismatch. This flexibility makes the COB light strip more convenient during installation and use, capable of meeting various complex and special lighting requirements. The COB light strip adopts flip-chip bonding technology. The LED chips are directly welded to the flexible circuit board by machine, and the chips are directly glued into a line, which provides better heat dissipation and longer service life. The production pass rate of Skyball COB light strips reaches 99.8%, and the products work stably and reliably.
COB Strip light adopted Flip-chip technology,it refers to dot light souce intergration technology with LED chip attached directly to FPC,in which bracket concept was excluded.It can design its light-emmiting area and diameter as per shape and structure of the product.
DRIVER FREE AC COB STRIP LIGHT 10CM PER CUT AC110-130V AV220-240VHigh-voltage drive-free safe circuit with built-in voltage regulator diodes and flip-chip bonding for better heat dissipation and stability. Dam process + 10mm milky white silicone base enables efficient secondary light distribution, uniform soft glow (no dark spots) comparable to flexible strips.Compact 4.5mm height, fits most aluminum profiles, easy to install .Cuttable every 10cm, 30m series connection without external driver; dimmable and flicker-free with constant current power. Flame- retardant, high-temperature and corrosion-resistant, ideal for narrow spaces, renovation projects and commercial long-distance high-quality lighting.SKY-SHVC10045-COB-52008-FHSE-MWF-DR-10Send Inquiry
10CM PER CUT AC COB STRIP LIGHT AC110-130V AC220-240V FREE-DRIVERDriver-free 110-130V/220-240V AC(Professionally engineered safety circuit-no external rectifier or power supply needed; connects directly to AC mains.)IP65+ fully waterproof, seamless pure silicone body (Made of eco-friendly, highly breathable pure silicone-resistant to freezing, cracking, extreme cold and heat, and hydrochloric acid corrosion; flexible for smooth, linear light emission.)High-density LED configuration(520 LEDs per meter for uniform illumination with virtually no visible hotspots and linear light output; luminous flux:600-800 lumens per meter.)Ultra-long series connection(Up to 50 meters continuous run without interruption; voltage drop between ends within 3V over a 25-meter length). Cuttable every10cm(Crystal-clear, solder-free connectors-10 cuttable segments per meter).SKY-SHVC1005-COB-52008-220V-DHSE_WM-DR-10Send Inquiry
FREE DRIVER AC110-130V AC220-240V COB STRIP LIGHT 10CM PER CUTDriver-free 220-240V AC operation (Professionally designed safety circuitry-no external rectifier or power supply required; plug directly into AC mains.) Fully waterproof IP65+ silicone body (Made of eco-friendly, highly breathable, acking, extreme temperatures, and hydrochloric acid corrosion; flexible for smooth linear lighting.) High-density LED arrangement(520 LEDs per meter for uniform, near-spotless linear illumination with a luminous flux of390-1445 lumens per meter.)Ultra-long series connection(Up to 50 meters continuous run without interruption; voltage drop between ends within 3V over 25meters.) Cuttable every 10cm(Crystal clear, solder-free connectors-10 cuttable segments per meter).SKY-SHVC10045-COB-52008-220V-DHSE-TP-DR-10Send Inquiry
RGB COB STRIP LIGHT AC110-130V AC220-240VAdopting industry-leading flip-chip die bonding, this high-voltage COB LED strip features direct chip mounting on FPC for firmer adhesion, superior heat dissipation, low luminous decay and 180° beam angle. With 420 LEDs per meter in high density and cuttable every 50cm, it delivers uniform spot-free RGB color shifting light.Boasting great wear, acid, alkali, high-temper- ature and UV resistance, it suits indoor/ outdoor decoration and nightscape lighting.SKY-SHVC1208-COB-42010-DSE-MWF-50Send Inquiry
